GYS Ergo Door Lift

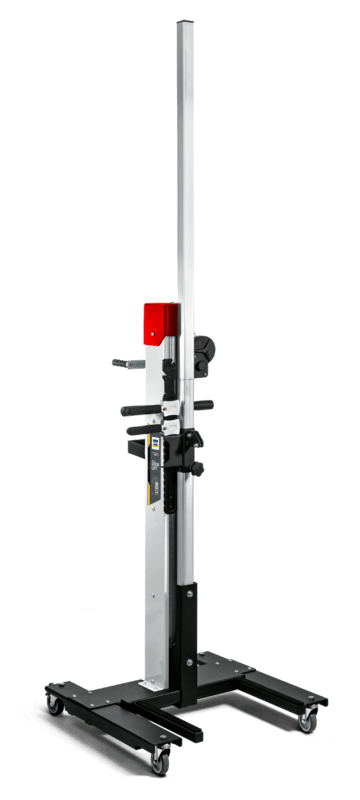

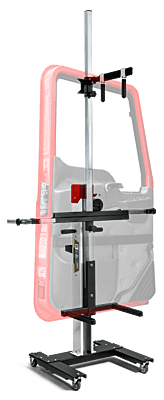

GYS Ergo Door Lift – Safe, Single-Operator Door Handling
The GYS Ergo Door Lift is designed to make door removal and installation easier, safer, and more efficient for any shop. Built to allow a single technician to handle doors on cars and light commercial vehicles, it eliminates the need for a second person and reduces the risk of panel damage. Its hand-cranked winch offers precise height and hinge alignment, while the adjustable retaining bar with quick-release latches keeps doors secure during work.
Mounted on four caster wheels, including two with brakes, the Ergo Door Lift is highly maneuverable yet stable when in use. Rubber supports protect paintwork, and a built-in tool holder keeps essentials close at hand. The lift is compatible with doors up to 81 inches high, and an optional wide-door bar handles sliding doors on commercial vehicles up to 68 inches wide. Compact and durable, it’s a versatile material-handling solution for busy collision centers and workshops.
Key Features
Single-Operator Design – Safely remove or install car and light commercial vehicle doors without additional help.

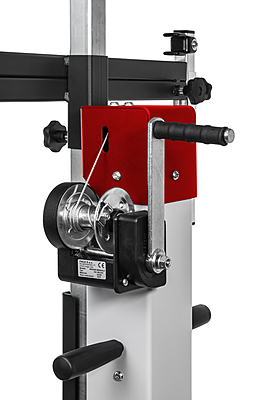

Precise Alignment – Hand-cranked winch for accurate height adjustment and hinge positioning.

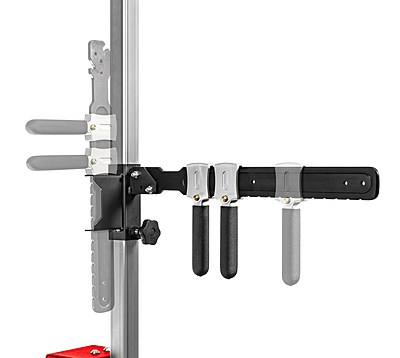

Secure Retention – Adjustable retaining bar with two quick-release latches keeps the door stable during handling.
Paint Protection – Rubber supports prevent scratches or damage to the panel finish.
Maneuverable and Stable – Four caster wheels for easy movement; two include brakes to hold the lift securely in place.
Tool Ready – Built-in holder for wrenches, screwdrivers, and accessories.
Compact Storage – Integrated storage device for retaining bar when not in use.
Optional Wide-Door Kit – Handles larger sliding doors up to 68 inches wide and heights up to 81 inches.
Specifications
Reference: 082670
Dimensions: 46 x 11 x 11 in (base footprint approx. 35.5 x 27 in)
Weight: 88 lbs
Max Door Width: 12 in (standard) / 68 in (with optional kit)
Max Door Height: 81 in (with optional kit)
Grip Depth: 10 in
Load Capacity: 110 lbs
Construction: Steel with durable finish
Compliance: EN 1494 safety standard
Origin: Made in France
