eTRUCK – Remote Diagnostics & Regeneration for Heavy-Duty Vehicles
Have a truck sidelined by a clogged DPF filter? With eTRUCK, you can trigger a forced regen remotely—no on-site technician required.

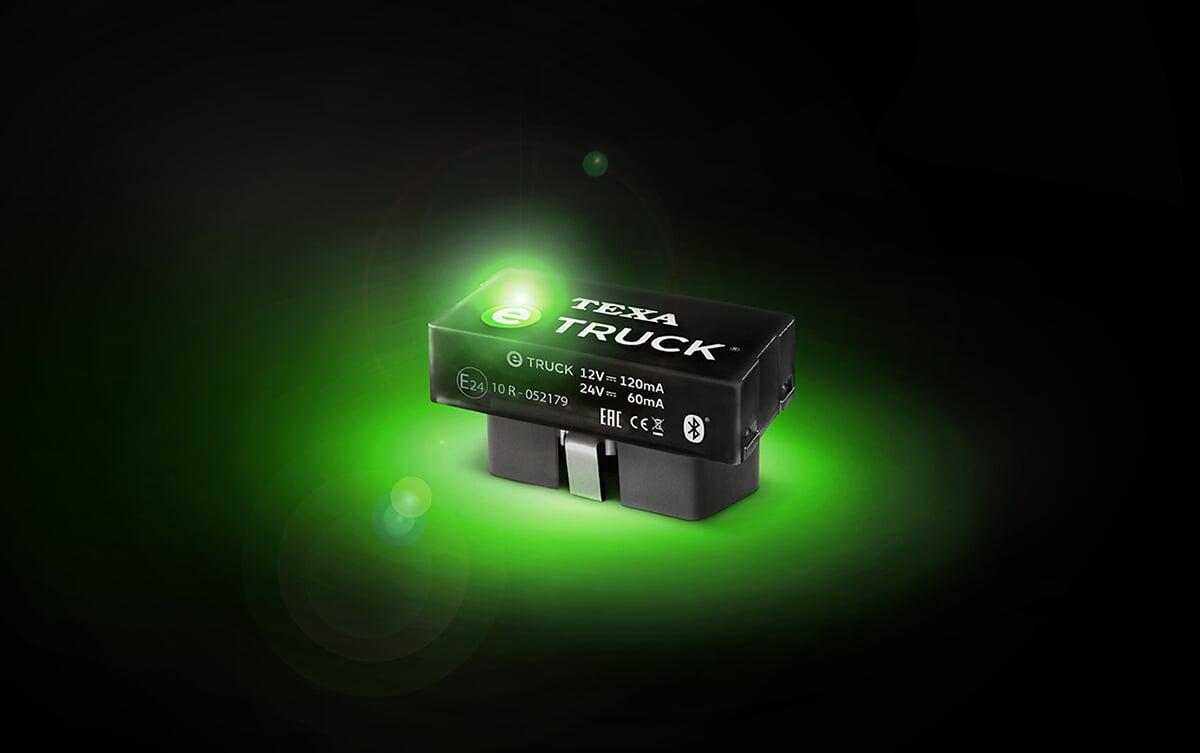

eTRUCK is a compact device that plugs into the vehicle’s diagnostic socket* and connects in just minutes. It enables remote monitoring, predictive maintenance, and advanced vehicle adjustments to reduce downtime and increase efficiency.
Designed for trucks, agricultural machinery, and construction equipment, eTRUCK keeps technicians continuously connected to their customers’ vehicles—building long-term trust through proactive service.

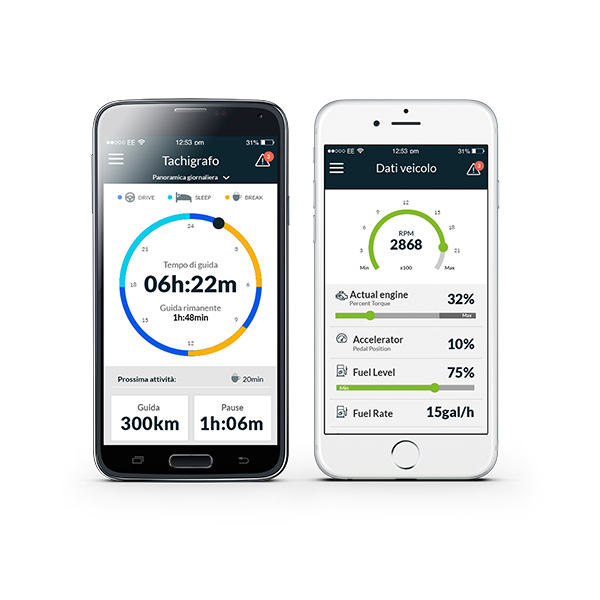

Fleet managers and drivers benefit from real-time updates on vehicle health, helping improve uptime and reduce costly surprises.
*Compatible with 16-PIN OBD and HD 9-PIN Deutsch connectors using an adapter (for American heavy-duty trucks).
eTruck - Remote Diagnostics & Regeneration
eTruck - Remote Diagnostics & Regeneration
eTRUCK – Remote Diagnostics & Regeneration for Heavy-Duty Vehicles
Have a truck sidelined by a clogged DPF filter? With eTRUCK, you can trigger a forced regen remotely—no on-site technician required.
eTRUCK is a compact device that plugs into the vehicle’s diagnostic socket* and connects in just minutes. It enables remote monitoring, predictive maintenance, and advanced vehicle adjustments to reduce downtime and increase efficiency.
Designed for trucks, agricultural machinery, and construction equipment, eTRUCK keeps technicians continuously connected to their customers’ vehicles—building long-term trust through proactive service.
Fleet managers and drivers benefit from real-time updates on vehicle health, helping improve uptime and reduce costly surprises.
*Compatible with 16-PIN OBD and HD 9-PIN Deutsch connectors using an adapter (for American heavy-duty trucks).
TEXA eTRUCK – Technical Specifications
Model: TEXA eTRUCK
Processor:
• ARM Cortex M4 (STM32F439ZIY6)
Memory:
• SDRAM: 8 MB
• Flash NAND: 4 GB
Communication:
• Bluetooth Classic 2.1
• Bluetooth 4.0 Low Energy (Smart Ready)
Diagnostic Connector:
• OBD ISO15031-03 for 24V vehicle systems
Supported Automotive Bus Types:
• 4x HS CAN transceivers (OBD pins 3–11, 1–9, 12–13, 6–14)
• 1x J1708 transceiver (pins 12–13)
• 1x ISO9141-2 / ISO14230 transceiver with 60mA protection (pins 3 or 7)
Power Supply & Consumption:
• Voltage: 12V / 24V DC
• Standby Consumption: < 6 mA
• Normal Mode: 60 mA (12V) / 120 mA (24V)
• Activation via OBD pins 1 & 8 or by monitoring battery voltage
Sensors:
• Accelerometer: 3-axis, ±16 G
• Gyroscope: 3-axis, ±2000 DPS
Visual Indicators:
• 1 bi-color LED (green/red)
• 1 blue LED
Operating Conditions:
• Operating Temp: –20°C to +70°C
• Storage Temp: –40°C to +85°C
• Humidity: 10% to 80% (non-condensing)
Wireless Specs:
• ISM Band: 2400–2483.5 MHz
• Max Transmit Power: 4 dBm
Dimensions & Weight:
• Dimensions: 47.8 × 23.4 × 24.4 mm
• Weight: 15 g
Compliance & Certifications:
• Directives: RED 2014/53/EU, RoHS 2011/65/EU
• Standards:
EN 301 489-1 V2.1.1
EN 301 489-17 V3.1.1
EN 300 328 V2.1.1
EN 62479:2010
EN 60950-1:2006 + A11/A1/A12/AC:2001 + A2:2013
ISO 7637-1:2002
ISO 7637-2:2011
• Regulation: ECE/ONU R10
Warranty:
• 1 Year
