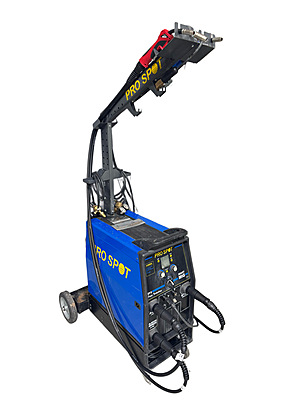

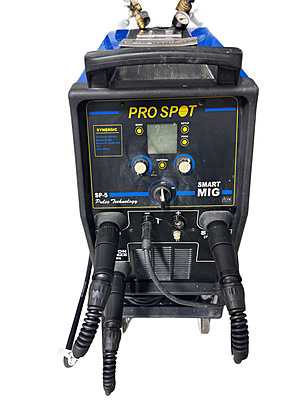

Reconditioned | Pro Spot | SP-5 Pulse MIG Welder - GREAT SHAPE UNIT
Product Details – ProSpot SP5 Pulse MIG Welder
Power Supply:
• Single Phase, 208–230V
• 33A, 50/60 Hz
Welding Output Ranges:
• MIG: 20A / 15V – 200A / 24V
• TIG: 5A / 10V – 200A / 18V
• Stick (MMA): 5A / 20.2V – 200A / 28V
Supported Materials:
• Aluminum
• Silicon Bronze
• Mild Steel
Torch Configuration:
• 3 Dedicated MIG Torches — No spool gun required
• One torch per wire type/material for seamless changeover
• Ideal for aluminum, silicon bronze, and steel applications

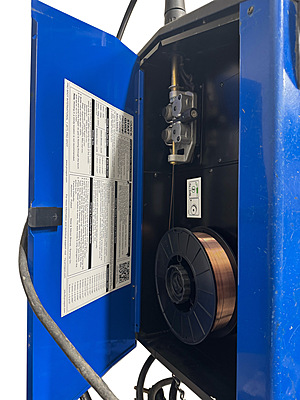

Wire Spool Capacity:
• Aluminum: 1.2mm – 2kg (approx. 5 lbs)
• Silicon Bronze: 0.8mm – 10 lbs
• Mild Steel: 0.8mm – 5kg (approx. 11 lbs)
Features & Benefits:
• Automatic Switching – Grab-and-go torch logic automatically applies correct settings and gas for each material
• Multi-Process Capable – MIG, TIG, and Stick welding
• Fan Cooled & IP23S Rated – Suitable for demanding shop environments
Insulation Class: H
System Weight: 205 lb (93 kg)
