Riveter GYSpress 10T
GYSPRESS 10T US – Air-Powered Riveting System
Ref. 070653 – OEM-Grade Riveting for Modern Collision Repair

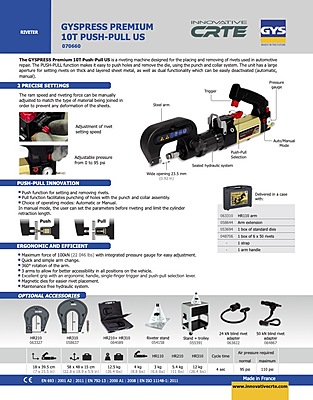

View Detailed Product Information Section - Download Information - Click Here

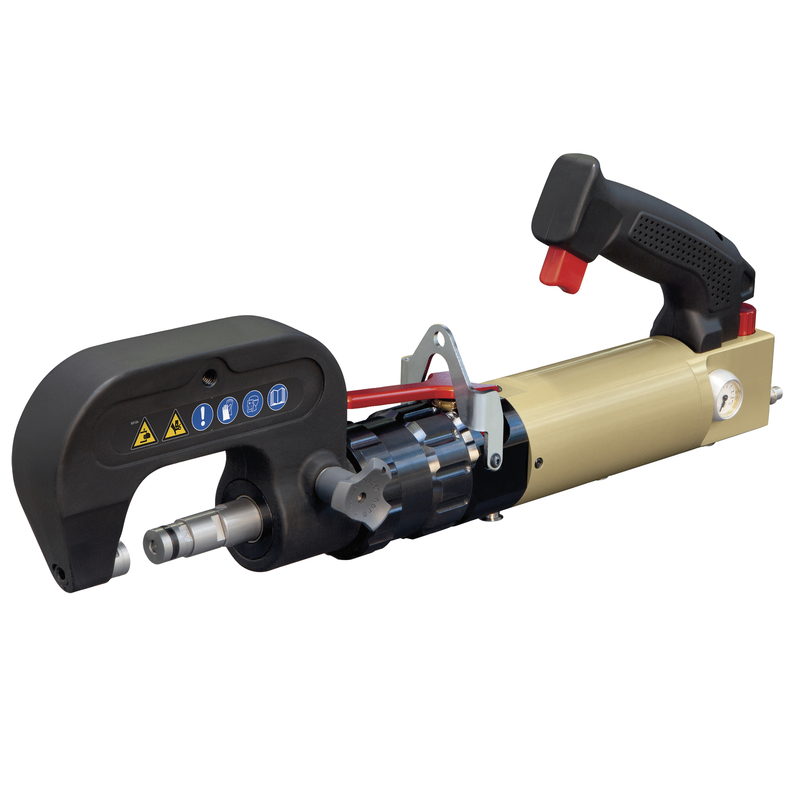

The GYSPRESS 10T US is a powerful, air-operated hydraulic riveter designed for modern auto body repair, supporting both self-piercing and flow-form rivet applications. Engineered for high-strength and lightweight vehicle structures, it delivers precision, safety, and ease-of-use in demanding collision environments.
This unit offers up to 10 tonnes (22,046 lbs) of controlled pressure—adjustable via an integrated PSI gauge—and includes a fast-swapping arm interface with full 360° swivel capability for accessing hard-to-reach structural points.
🔩 Key Features:
Air-Powered Precision
Fully automatic system delivers consistent cycle times (≈4 seconds) with working pressure adjustable from 0 to 95 psi (max 110 psi).
Accurate Riveting Control
Adjustable ram speed and riveting force allow precise settings based on material type and thickness—helping avoid panel distortion and ensuring clean joints.
360° Swivel C-Arm
The included HR110 arm rotates freely around the main body for exceptional access. Compatible with optional HR210 and HR310 arms for deeper structural repairs.
Ergonomic Operation
Features an easy-to-use trigger handle, magnetic dies for simplified rivet placement, and a sealed hydraulic system that requires no maintenance.
Fast Arm Change
Quick-swap interface allows for efficient switching between arms and applications without tools.
📦 Included in the Kit:
GYSPRESS 10T US Riveter
HR110 Arm
Standard Die Kit (self-piercing Ø3.3mm & 5.3mm, flow-form Ø5.6mm)
Strap & Arm Handle
Center Punch & Extraction Tools
Box of Rivets
2 Die Keys

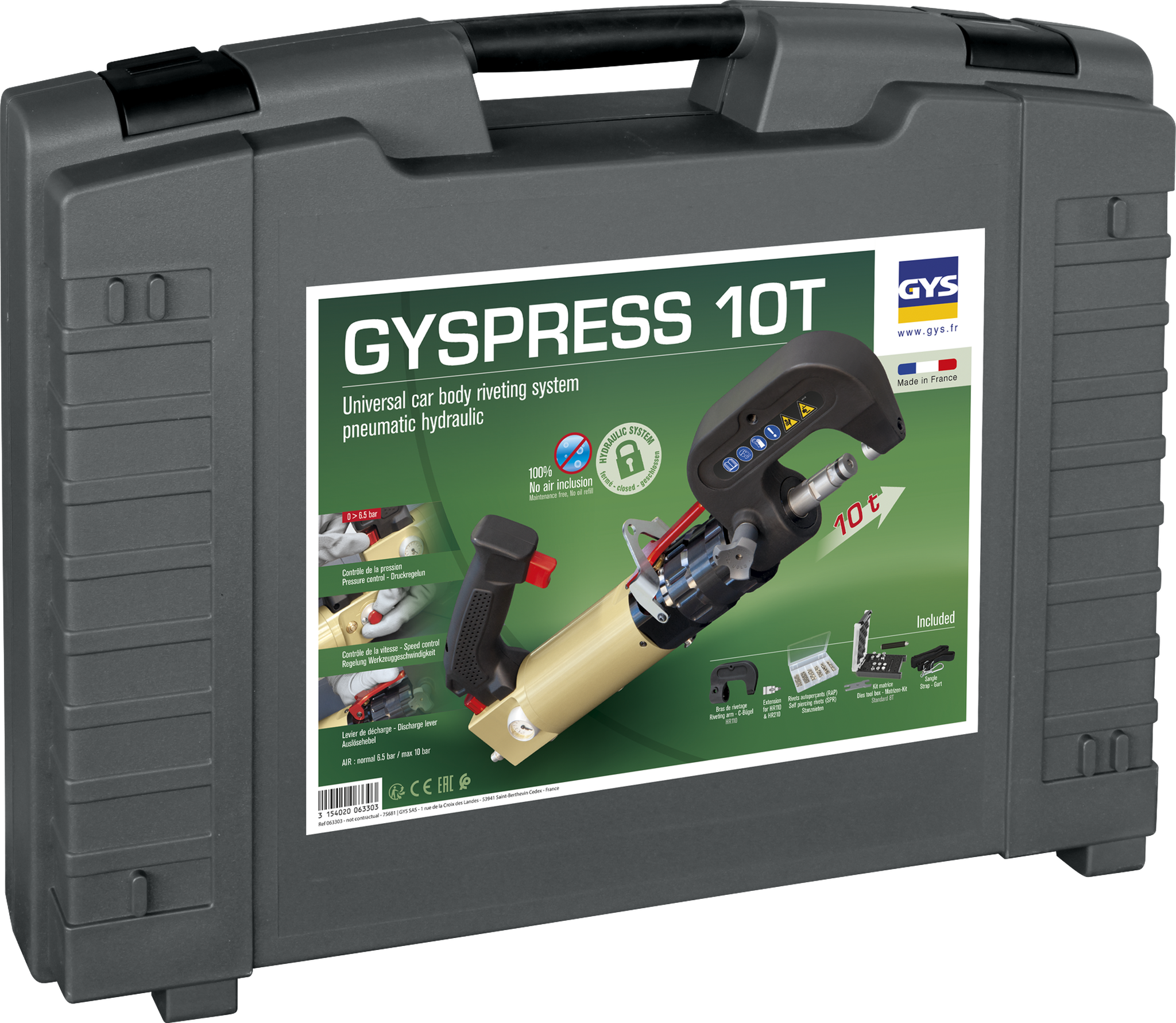

Delivered in a compact storage case
⚙️ Technical Specs:
Max Pressure: 10 tonnes
Air Pressure Required: 95–110 psi
Cycle Time: ~4 seconds
Tool Weight (w/o arm): 11.8 kg (26 lbs)
Arm Weight: HR110 – 4 kg | HR210 – 3 kg | HR310 – 5.4 kg
Dimensions: 58 x 48 x 15 cm
The GYSPRESS 10T US is made in France and conforms to the latest safety and performance standards (EN 693, EN 792-13, ISO 11148-1). Whether you’re outfitting an OEM-approved aluminum bay or modernizing your structural riveting workflow, this tool delivers professional-grade performance with simplicity and speed.
