u-i4s-2463 | Pro Spot Refurbished i4s | 220V | Reconditioned and ready for new home!

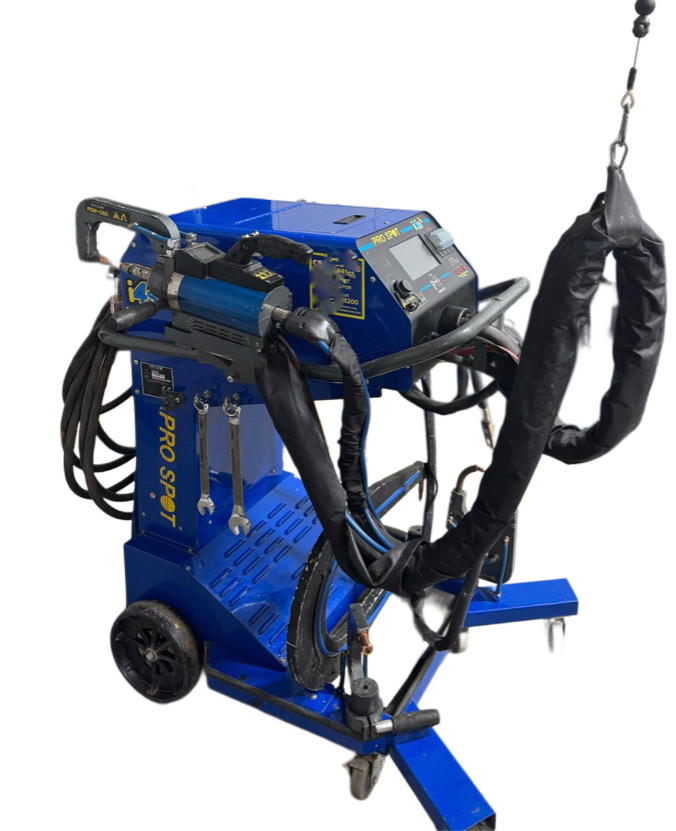

Refurbished ProSpot i4s – Fully Tested with Upgraded Accessories
This ProSpot i4s unit was taken in as a trade-in from a collision repair shop that recently upgraded to a brand-new PTI.G from GYS. Based on the serial number, this unit falls within the middle production range of i4s machines—known for being as reliable as an i4s can be.

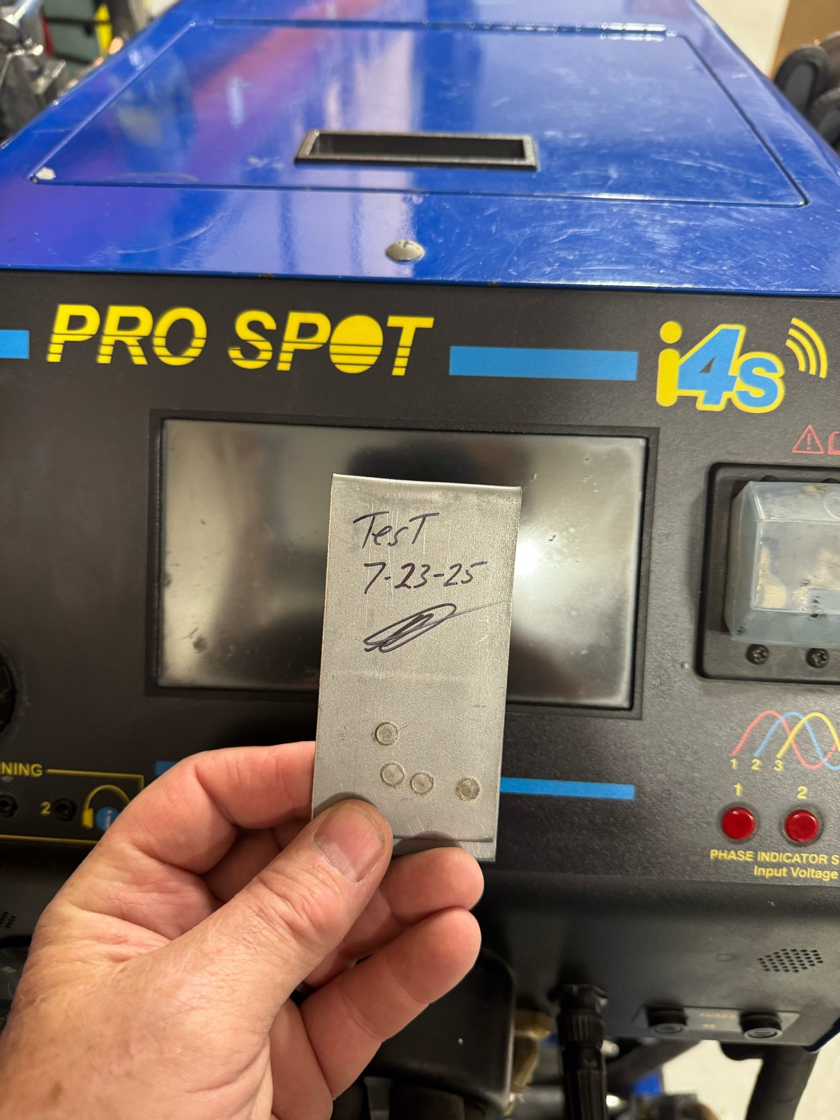

The machine is in fully working condition, and our team has outfitted it with key accessories to bring it as close to factory spec as possible. It has been cleaned, tested, and is ready for immediate use in any shop setting.

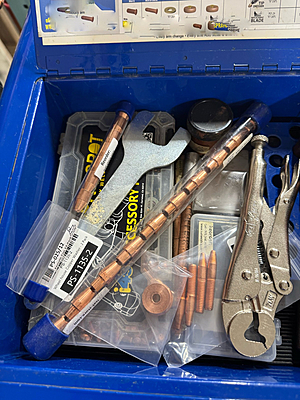

What’s Included:
Brand new stitch electrode (replaced missing part)
Two-pack wheelhouse electrodes for long-term use
New electrode pliers
Locking wrench
Spot hammer tips
Extra caps
Full set of maintenance tools
We can ship this unit anywhere in the United States.
Give us a call at 973-768-9812 to speak with a team member about purchasing this unit and reviewing shipping options. We can pallet, strap, and prepare this welder for transport to any location.
Visit us online at www.innovativecrte.com for more equipment and information.
ProSpot i4s Spot Welder – Key Specifications
Input Voltage:
3 Phase
208–240V / 400–480V, 50/60Hz
Welding Output:
12,500 Amps (DC)
Electrode Force:
1,240 lbs. (565 daN)
Cable Lengths:
Power Cable: 30 ft (10 m)
Weld Cable: 8.75 ft (2.67 m)
Cooling System:
Radiator/Pump active loop
Liquid-cooled to electrode tips
System Weight:
385 lbs. (175 kg)
Microprocessor & Software:
Wirelessly upgradeable software platform
Built-in user training videos and guides
On-gun display with fingertip controls
Touchscreen with pinch/zoom support
Built-in WiFi for updates, logs, and training
Protection Rating:
IP 21
Included & Optional Features
Included Features:
Adaptive Auto Weld: Smart welding based on material, thickness, and resistance
Full 360° arm rotation
High-pressure welding gun with built-in screen
Single-sided welding functions (10+ modes including nail, bolt, washer, and more)
Built-in speakers and headphone jacks for training playback
Exportable weld logs via WiFi
On-demand training built into the unit
Accessories:
Deep Reach Arm 520mm (PSW-520)
Wheelhouse Arm (90mm) – PSW-WH-090
C-Arm Assembly (80mm extension) – PSW-080
Weld Caps (A-Cap: PS-025, F-Cap: PS-023)
CX-i4s C2X Arm – Quick-connect with full force welds in Auto Mode
